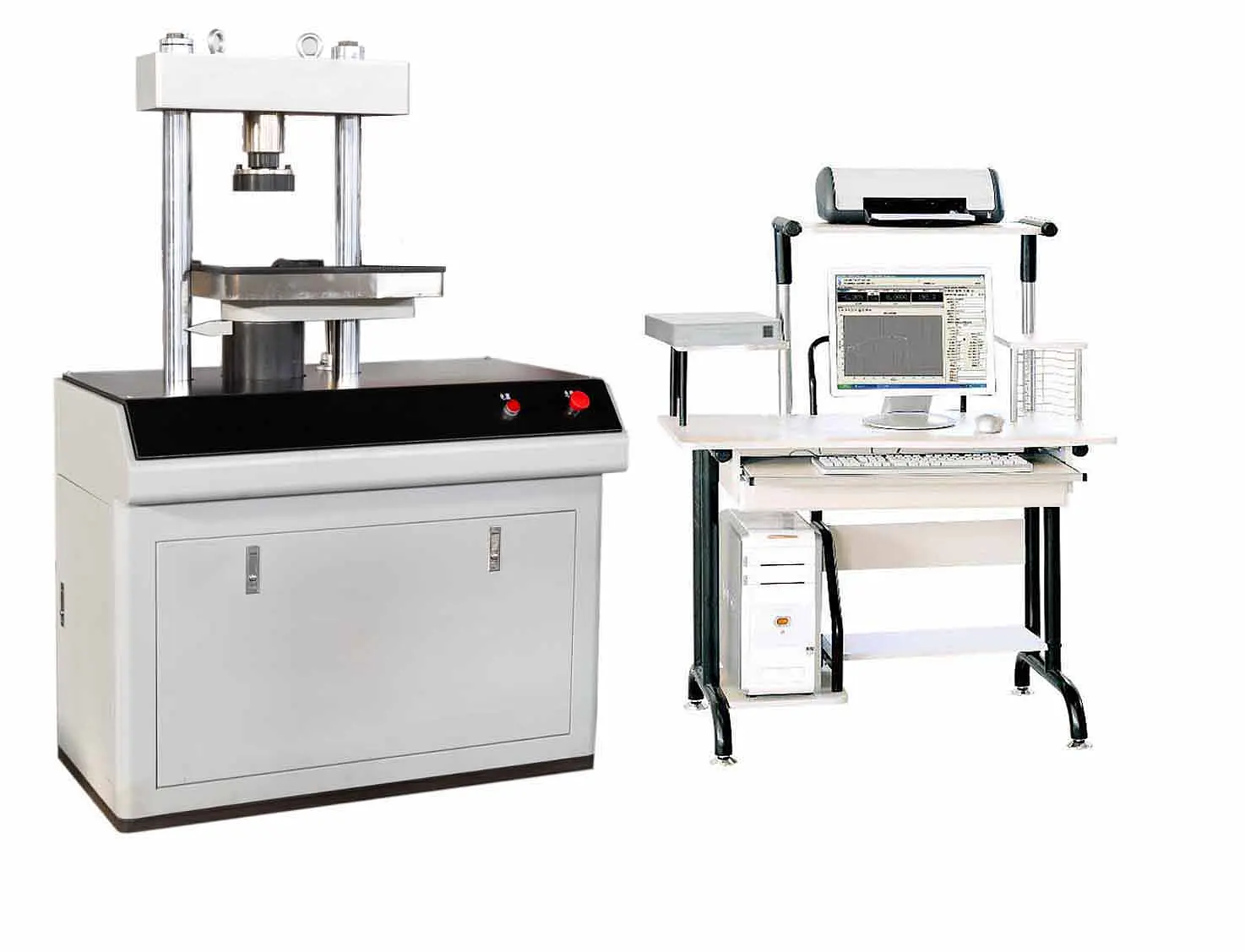

300kN electro-hydraulic servo compression testing machine
300kN electro-hydraulic servo compression testing machine
Applications
The compression testing machine adopt computer auto control, with constant test speed, constant stress, test force keeping and other control mode. The computer realize test data and test curve display, save,manage function, can print test report. With special fixtures, can test other material compression and flexual testing.
Features
This testing machine adopt AC servo system drive the AC servo motor,by precision reduction gears drives the ball screw,with high test accuracy,low noise.
Without pressure oil leakage and proportional valve blocking, low noise, more reliable.
Window control and dealing software, design more reasonable.
Can arbitrarily set pressure value, pressure time, auto calculate test result.
Advanced auto control function, can do single or batch test.
Auto stop,after sample broken.
With over load protection.
Specifications
| Model | YAW-300D |
| Max compression test force | 300kN |
| Test Accuracy | ±0.5% |
| Error of indication | ±0.1% |
| Test measurement range | 1%-100%FS |
| Control way | Computer control auto loading progress |
| Control Accuracy | ±1% |
| Constant loading speed | 0.1KN/S～50KN/S |
| Test space adjustment method | Block adjustment test space |
| Displacement resolution | 0.01mm |
| Speed | 0.1-50mm/min |
| Max compression space | 200mm |
| Size | 1000*560*1410mm |
| Power supply | 220V, 50HZ, 1.5 KW |
Main Configuration
| No. | product | quantity | photo |
| 1 | YAW-300D Main platform | 1SET |  |
| 2 | Compression clamp | 1SET |  |
| 3 | Cement compression clamp | 1SET |  |
| 4 | High-precision sensor | 1SET |  |
| 5 | Fully digital servo system | 1SET |  |
| 6 | Tools | 1SET |  |
| 7 | Software backup U disk | 1SET |  |
