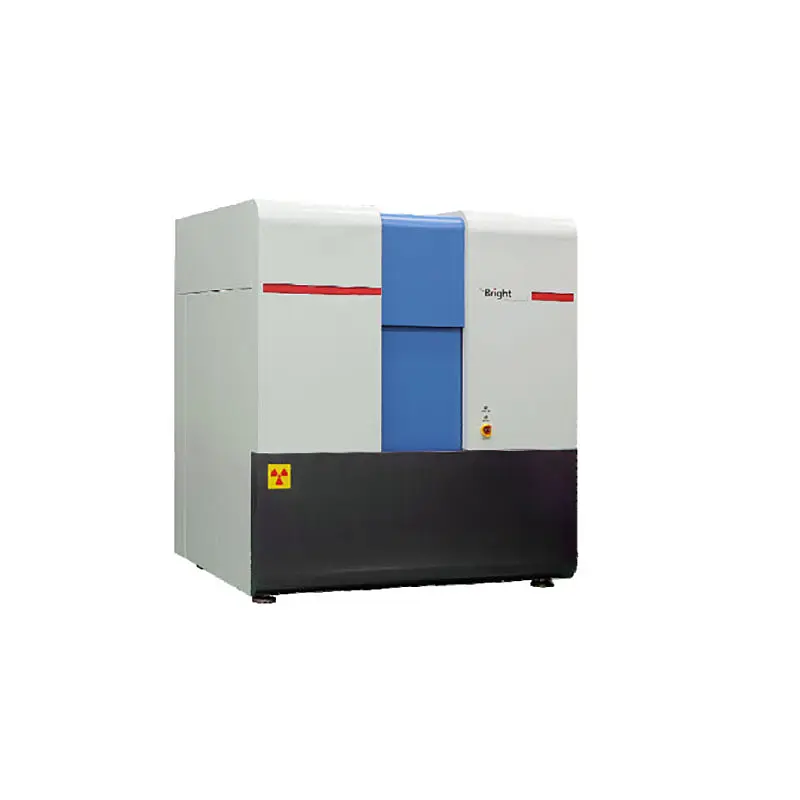

Bright M Industrial X-ray inspection equipment

Focus Size: 4μm

Resolution: 49.5μm / 99μm / 145μm

Loading Table Size: 300mm

XYZ Stroke: 300mm x 350mm x 600mm

Detail

Product Features

- Electronic X-ray inspection equipment.

- High precision marble base with whole board.

- Automatic loading and unloading system on the front of sample table

- Universal CT for auto parts.

- Suitable for PCB/SMT/BGA semiconductors, etc.

- Can be used for special inspection equipment for electrical and electronic parts.

- Optimized user interface and image filter.

- Confirm images quickly and clearly.

- Based on GPU (graphics processing unit) can provide ultra-high speed scanning.

- Automatically detect bubbles and bad functions.

- Provide real-time reconnaissance and fast scanning, and quickly provide CT data.

- CT rotating precision up to 10μm.

- The earliest demonstration center with 450KV high power output X-ray.

MODEL		Bright160MCT	Bright240MCT	Bright300MCT
X-Ray Emitter	Voltage (Max)	160kV	240kV	300kV
	Current (Max)	0.5mA (TOMXT) / 5mA (ROMXT)
	Power, Target (MAX)	350W
	Focus Size	4μm
Image Output Device	Flat Panel Detector(Active Area)	150 x 150 mm 250 x 300 mm300 x 300 mm 430 x 430 mm
Image Output Device	resolution	49.5μm / 99μm / 145μm
Manipulator	Loading Table Size	300mm
	XYZ Stroke	300mm x 350mm x 600mm
	Table Rotation	360°
	Max. Sample Weight	Max 15kg (option : 30kg)
	Dimension (W x D x H )	2400mm x 1950mm x 1910mm
	Equipment Weight	3,000kg
Environmental Conditions	Power Supply	220 VAC Single phase 50/60Hz
	Operation temperature	0℃ to ~ 40℃
	humidity	0% to 90%
	X-Ray Leakage Dose	＜1μSv/hour
