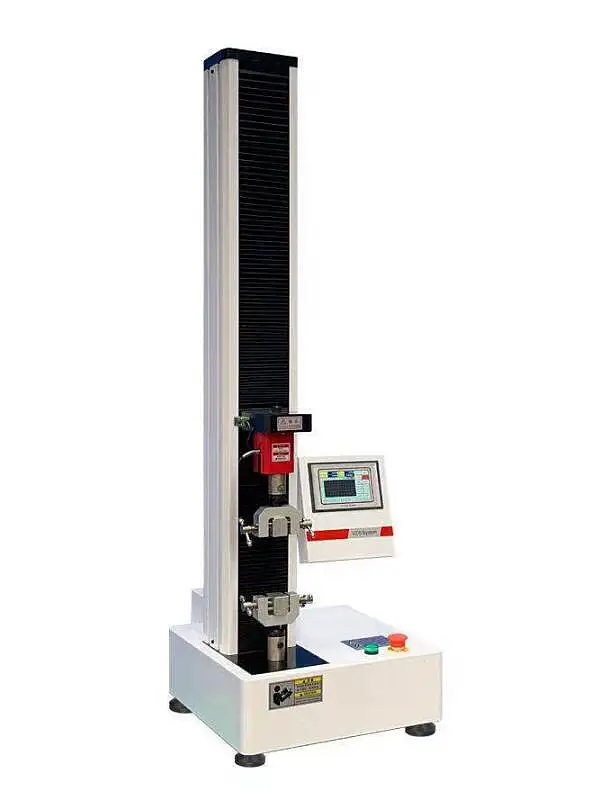

IEC 61631 mechanical strength tensile tester of cores made of magnetic oxides

Max Testing Force(N): 5000
Force Measurement Range: 2%~100%FS
Displacement Resolution: 0.01
Test speed: 0.05-500mm/min


ETT-5 mechanical strength tensile tester of cores made of magnetic oxides is It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Main composition and characteristics

-Host: This part is composed of workbench, middle beam, upper beam, guide column, outer cover, etc.
-Safety: With beam displacement limit protection, overload protection, and shutdown shutdown protection functions, it is safe and reliable to use.
-Transmission system: The AC speed control system controls the rotation of the AC servo control motor. After the deceleration system is decelerated, the moving beam is driven up and down by the high-precision ball screw pair to complete the tensile, compression, bending and other mechanical properties of the sample. The high-precision precision ball screw has stable loading, high efficiency, no noise in rolling transmission power, and high positioning accuracy; arc tooth-shaped synchronous belt deceleration system, with high efficiency, long life, low noise, maintenance-free, no gap in the vertical movement advantage.

Technical Specifications



Max Testing Force(N)


Force Measurement Range


Force Accuracy

Better than the indication value ±1%

Displacement Resolution


Displacement Accuracy

Better than the indication value ±0.5%

Effective Compression Space

 650mm (can be customized)

Test speed



450mm x 450mm x1450mm



Power Supply

AC220V,50Hz(can be customized)
